Description

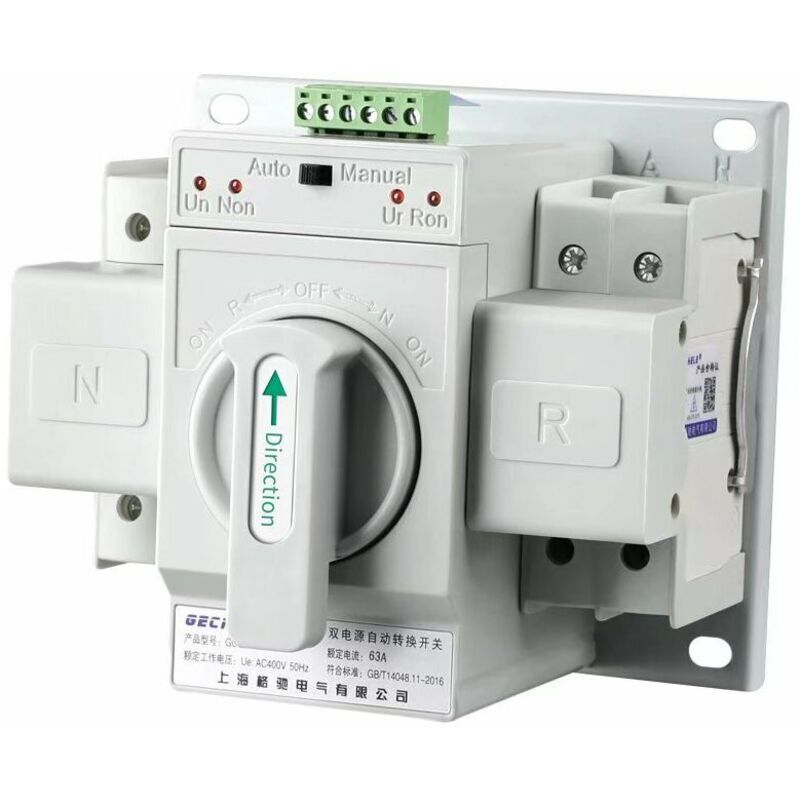

Frame current: 63A Rated current: 63A Number of poles: 2 Breaking capacity: 6kA ATS level: CB level Product type: Transfer switch Product series: Dual power automatic transfer switch Controller type: Motor Rated voltage: 230 Wiring method: up and down Dimensions: 150*138 Installation method: screw fixing Installation size: 118*128 Weight: 1.5kg Electrical life: 2000 Mechanical life: 1000 3C rated voltage range: 50V above 440V and below Working frequency: 50Hz/60Hz Rated voltage: AC400V Working voltage: AC220V Display function: LED display Product size: 150mm x 138mm x 115mm Working mode: automatic and manual Conversion time: ≤2S Usage level: AC – 33iB Conversion method: self-reversal and self-recovery Product description: The automatic switch dual power supply is to switch two power sources, divided into common power supply and backup power supply. When the common power supply is cut off, the backup power supply will supply power, and the common power supply will return to the usual
